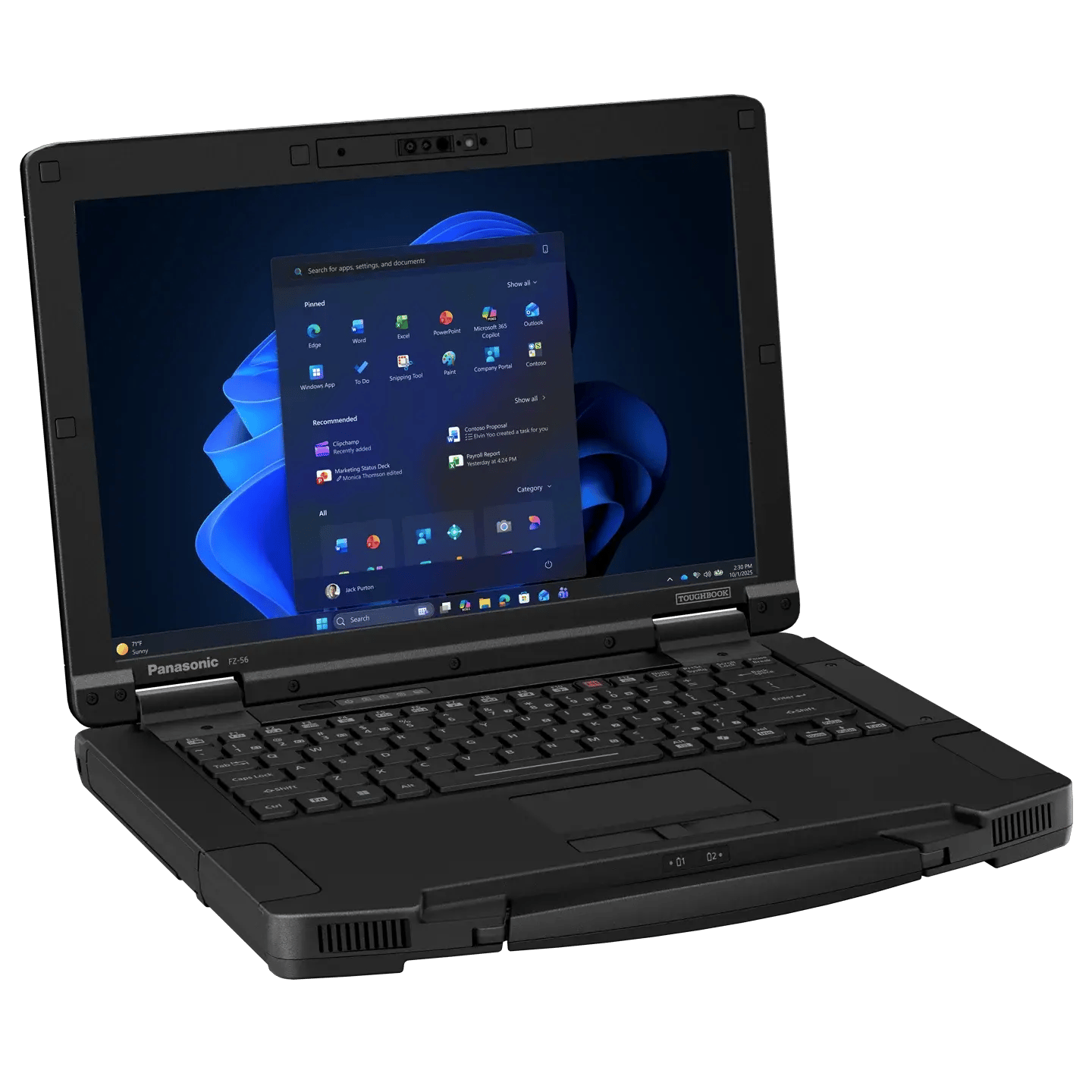

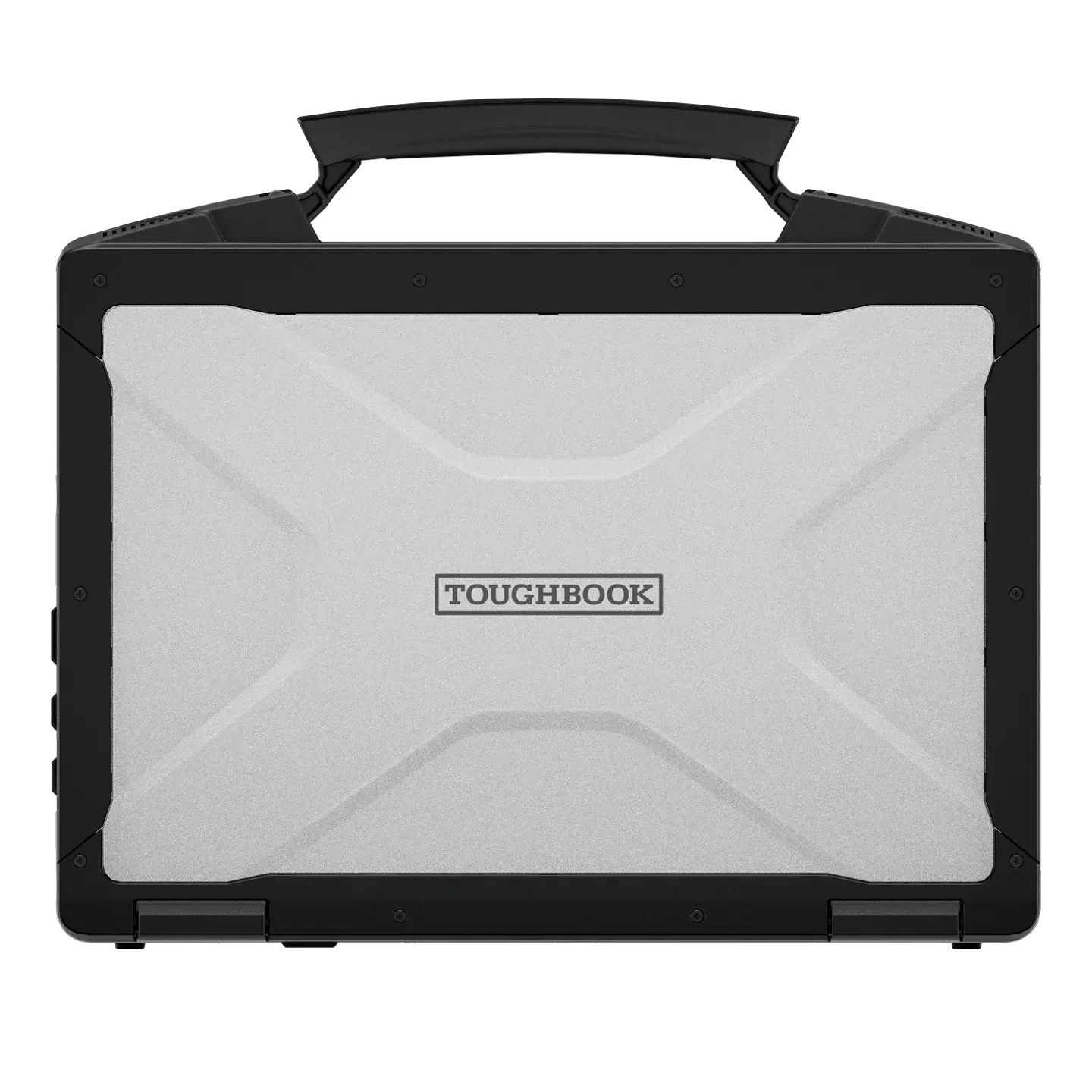

TOUGHBOOK 56
- Rugged PC with 6 user-replaceable areas and 5,760 combinations*1,*2
- Rugged PC available with a powerful 8GB dGPU for enhanced graphics and AI performance
- Up to 3 Ethernet ports with speeds up to 10Gbps
- Up to 24 hours of battery life
- Over a decade of vehicle dock compatibility*1
Product Specifications
| SKU | FZ-56 |
|---|---|
| Software | Windows® 11 Pro; Red Hat Enterprise Linux 10.1 |
| CPU | Intel® Core™ Ultra 5 vPro® Processor 235H (optional Ultra 7 265H) Featuring Intel® AI Boost |
| Durability | Rugged |
| Display | 14” 16:10 WUXGA (opt. 1000 nit gloved touch) |

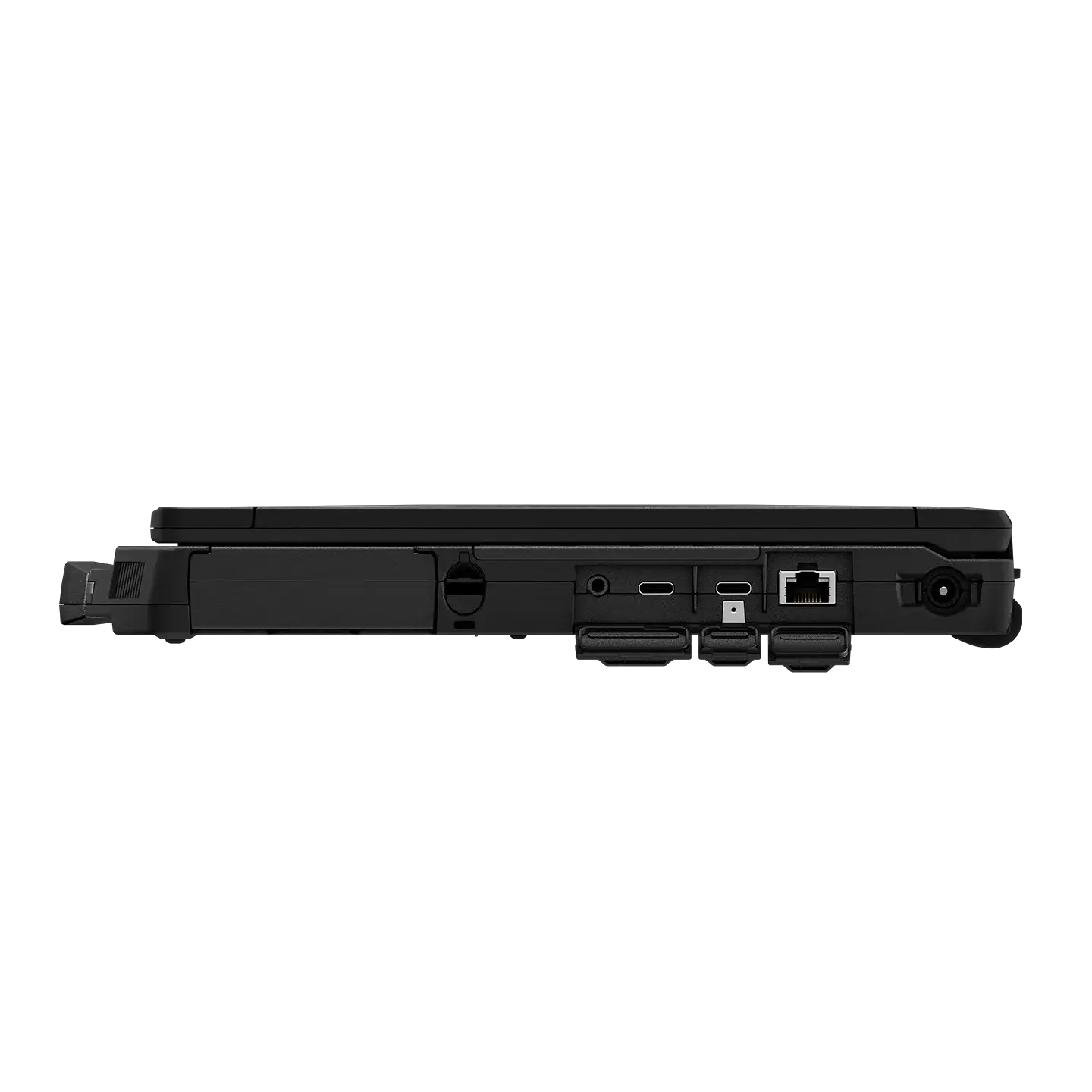

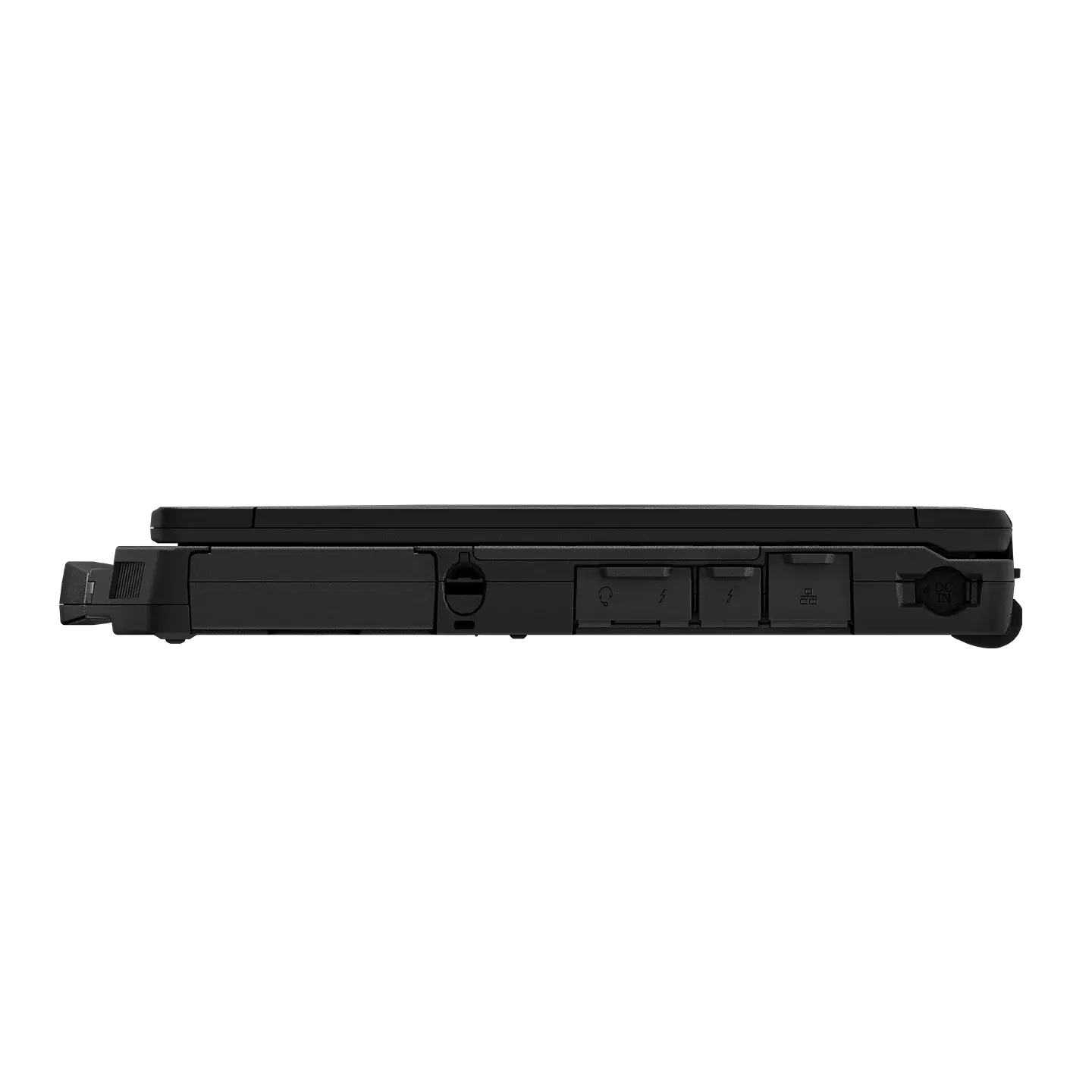

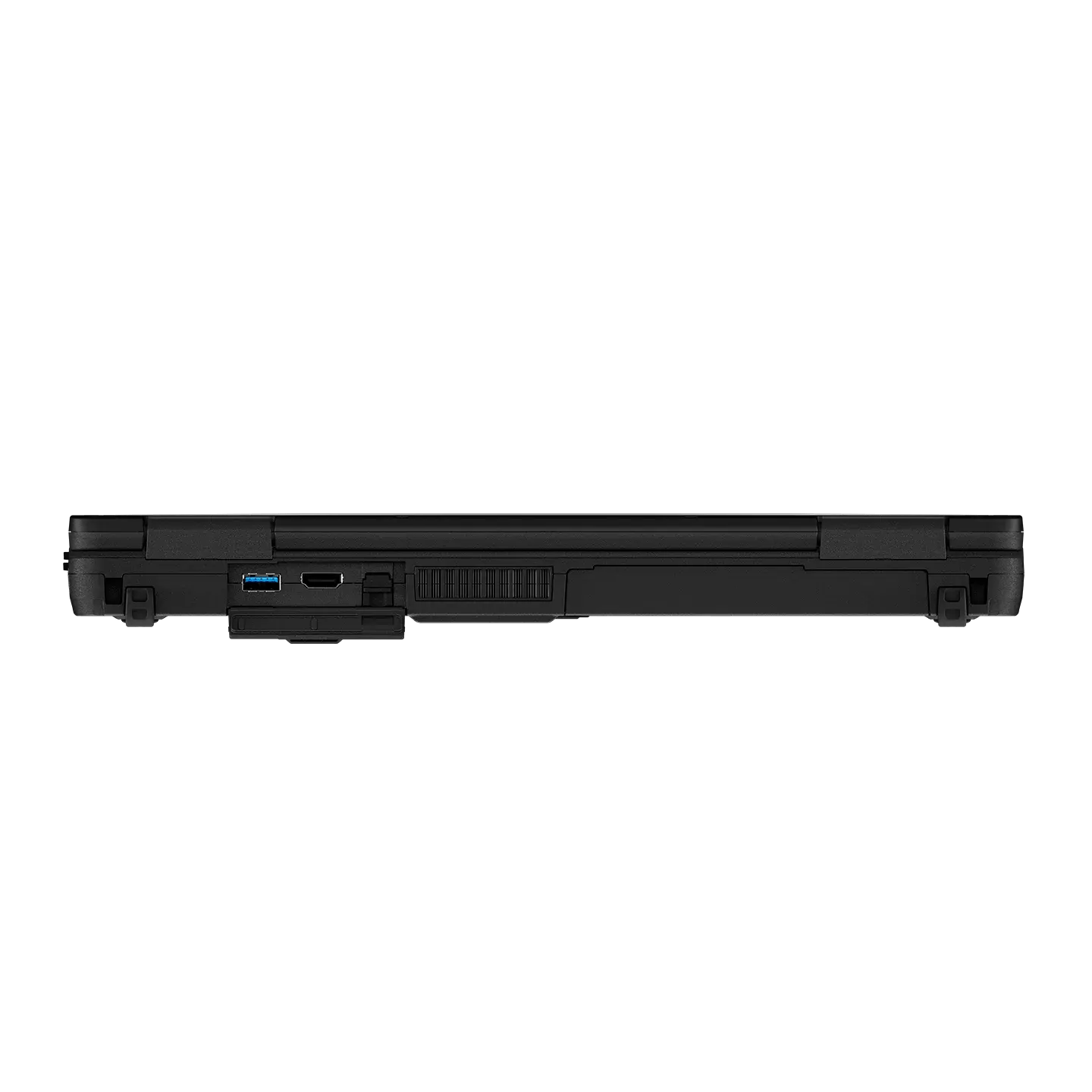

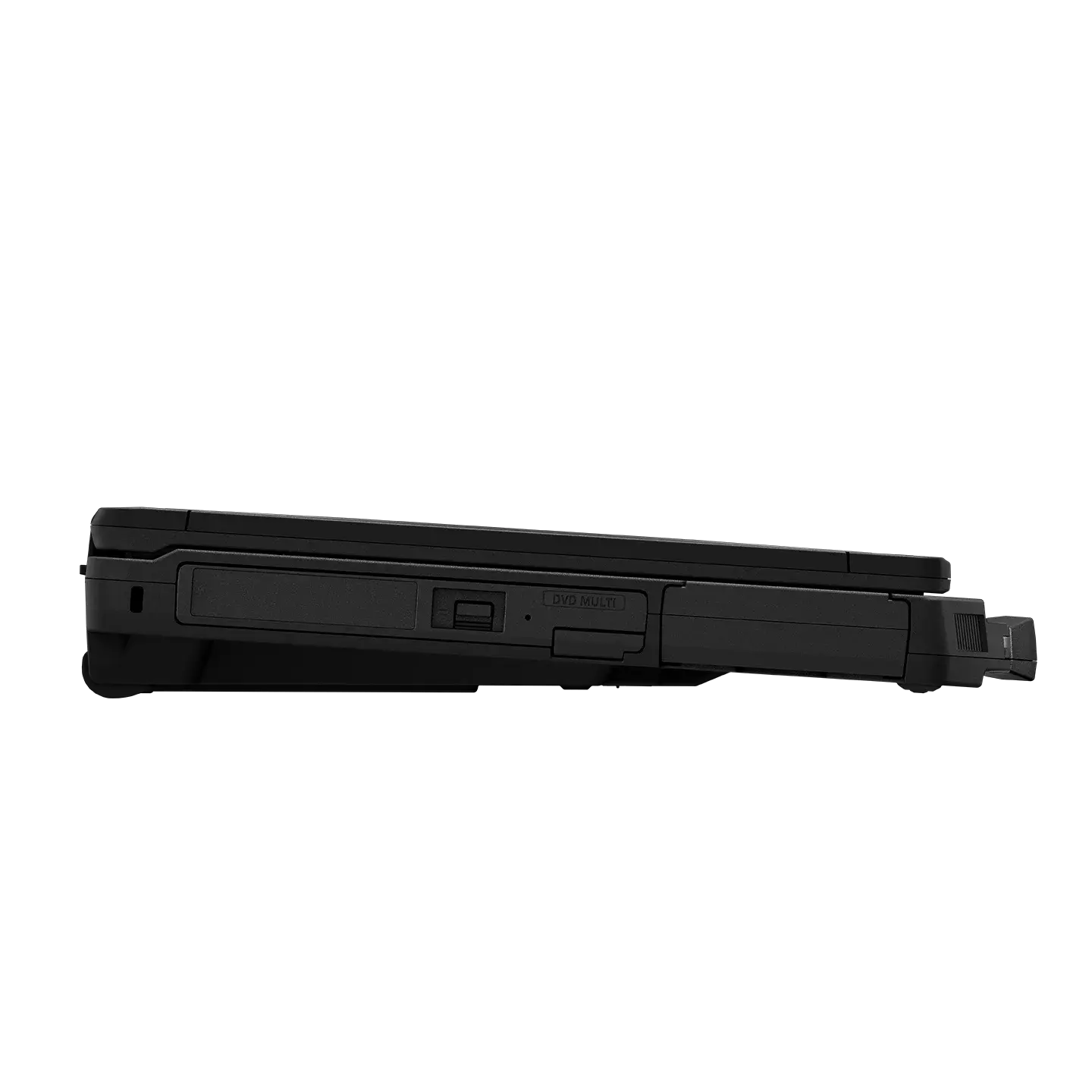

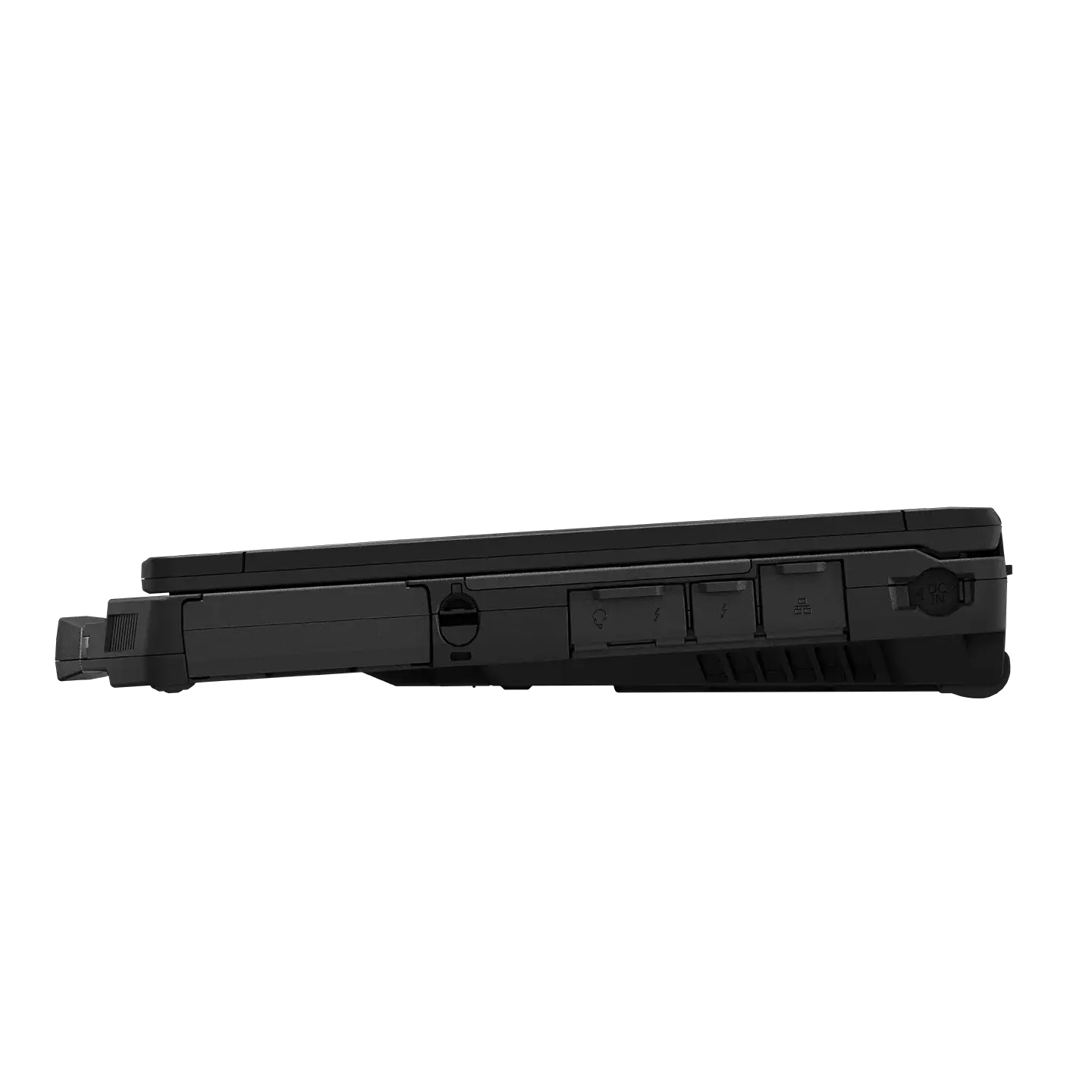

| Ports & Expansions | Thunderbolt™ 4 USB-C x2, Optional USB-C, USB-A (up to 2), Optional MicroSDXC, HDMI, Optional VGA, Ethernet (up to 3 & up to 10 Gbps), Optional True Serial, Audio In/Out, Dual SIM (4FF, eSIM), Docking Connector1, Optional DVD Drive, Optional Blu-ray Drive |
| Wireless | Wi-Fi 7, Bluetooth®, Optional GPS, Optional 5G (Sub6) |
| Weight | 4.66 lbs (4.99 lbs Touch model) |
| Power | 12 hours (24 with optional 2nd battery) – MobileMark 30 |
| Warranty | 3-year limited warranty, parts and labor |
| Testing | 3’ Drop, MIL-STD-810H, IP53 |
Rugged Performance
-
Rugged Where It Matters
Built for the environments where most laptops fail. -
MIL-STD-810H Tested
Validated for durability across drops, vibrations, shock, and temperature extremes. -
IP-Rated Protection
Built to resist dust, moisture, and environmental exposure.
Innovative Modular Design

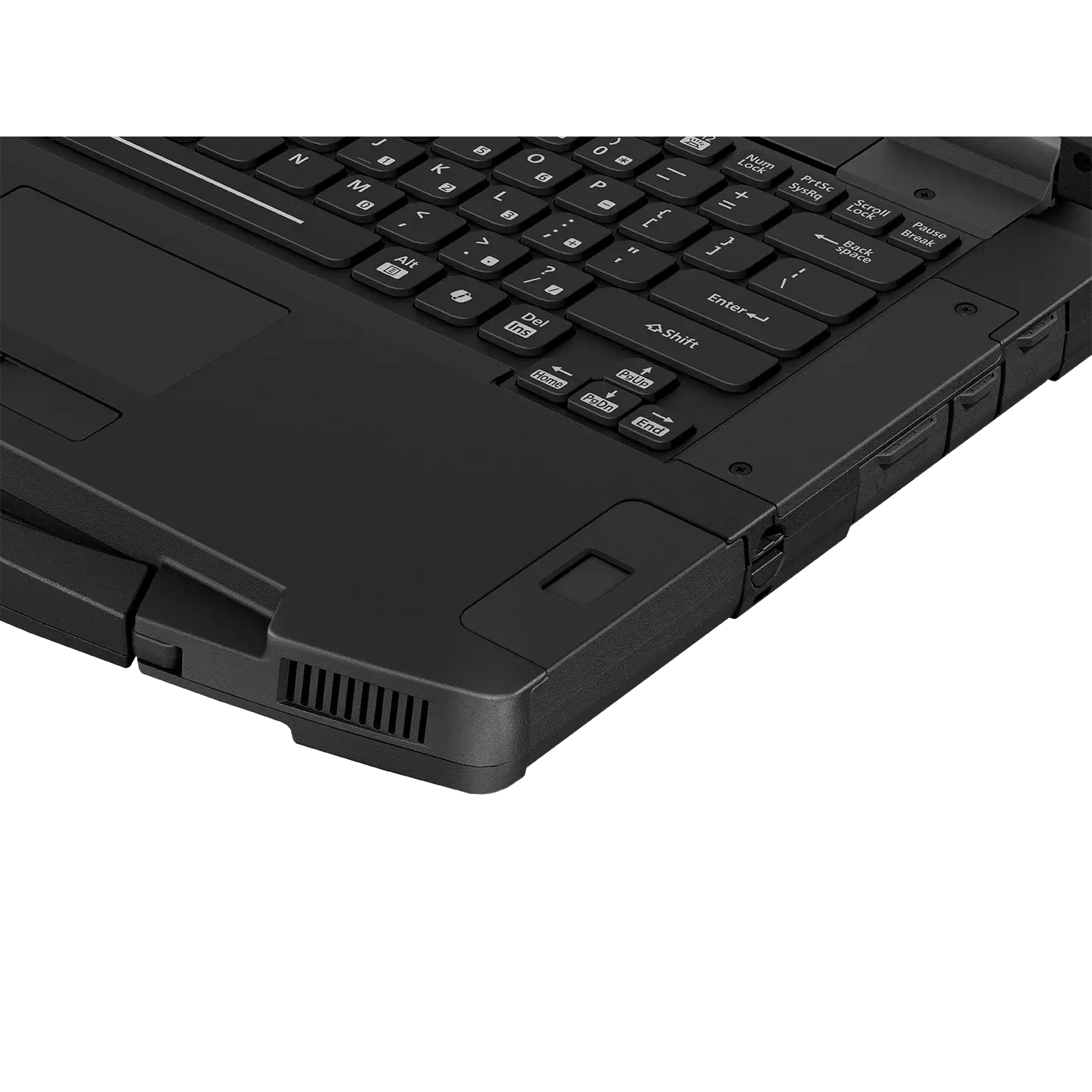

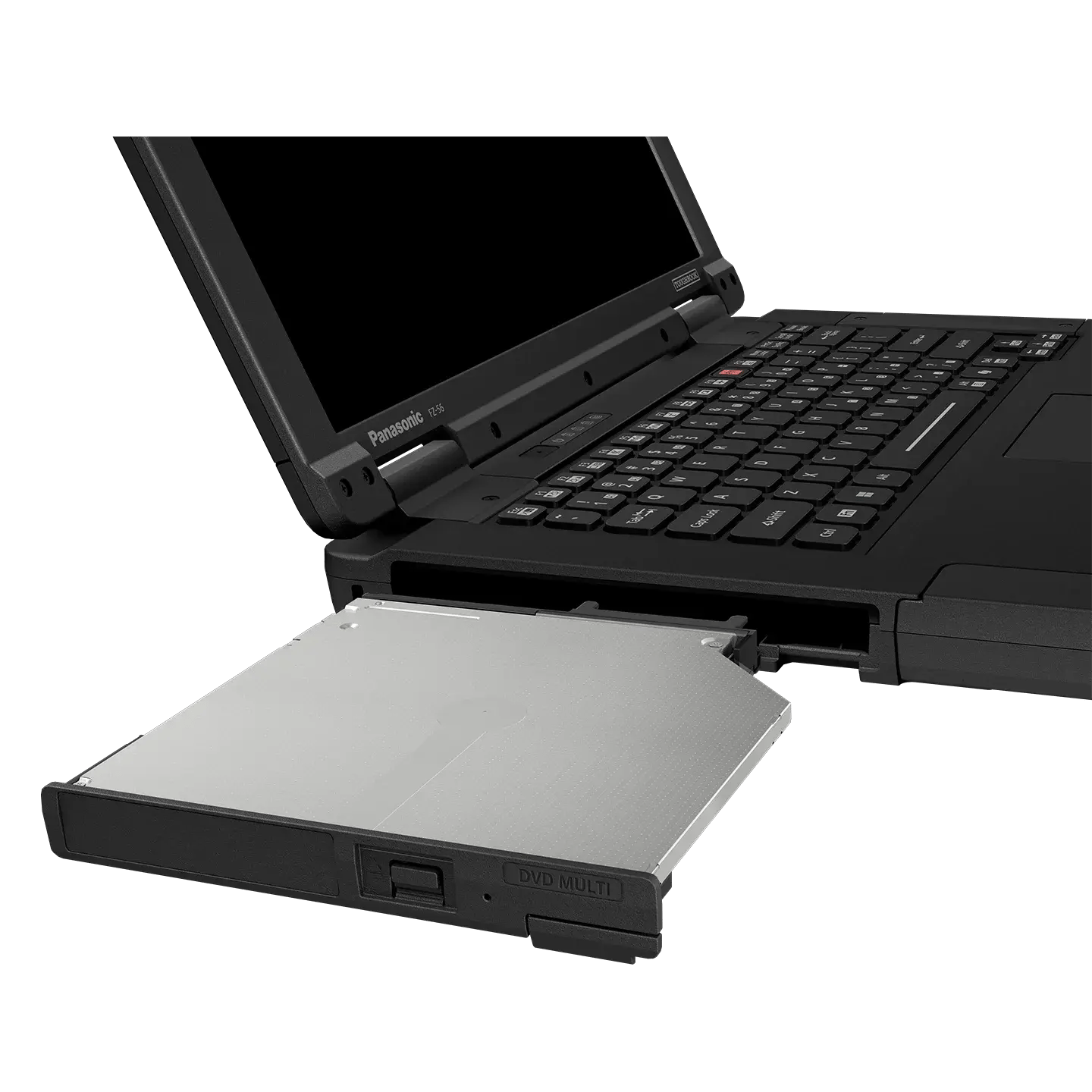

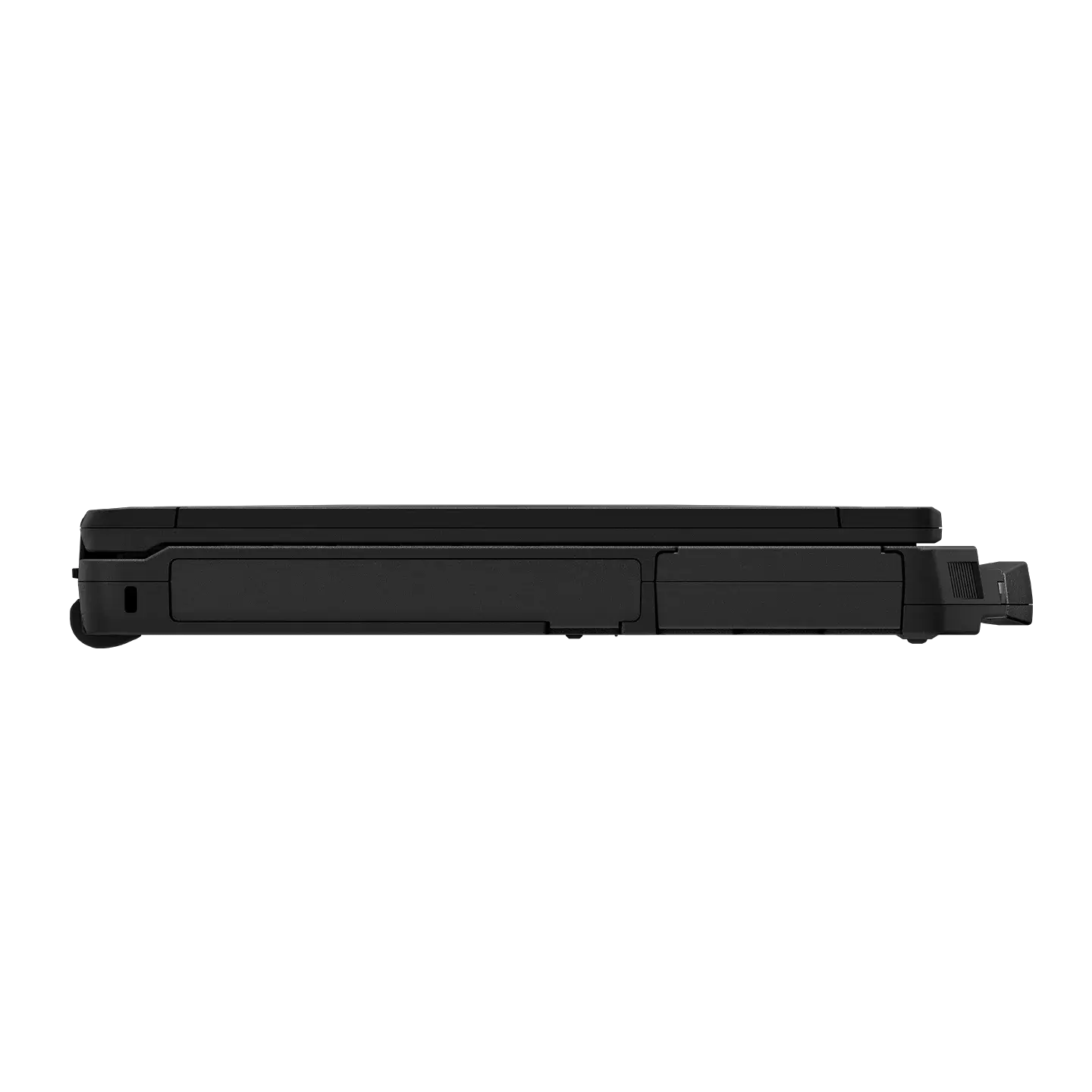

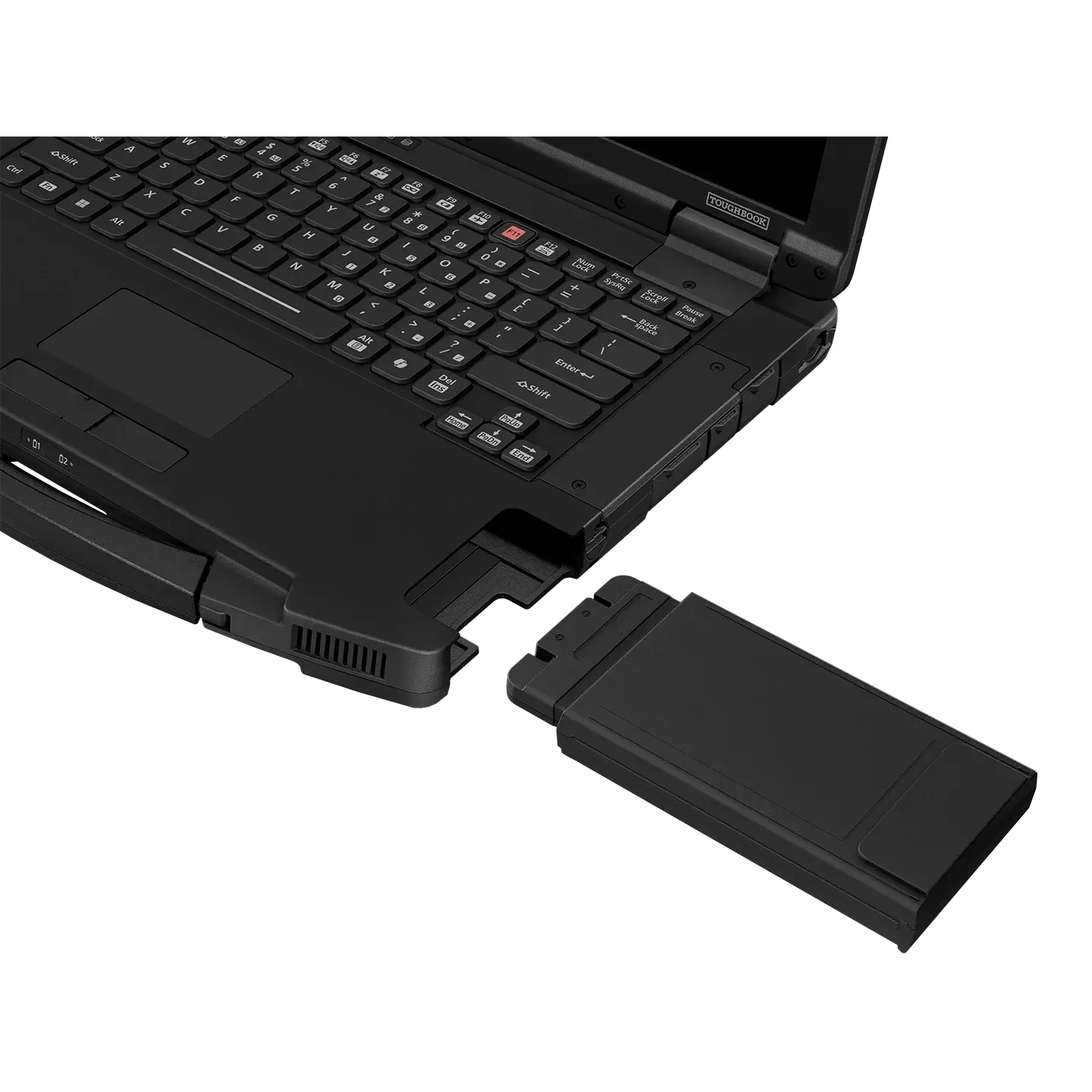

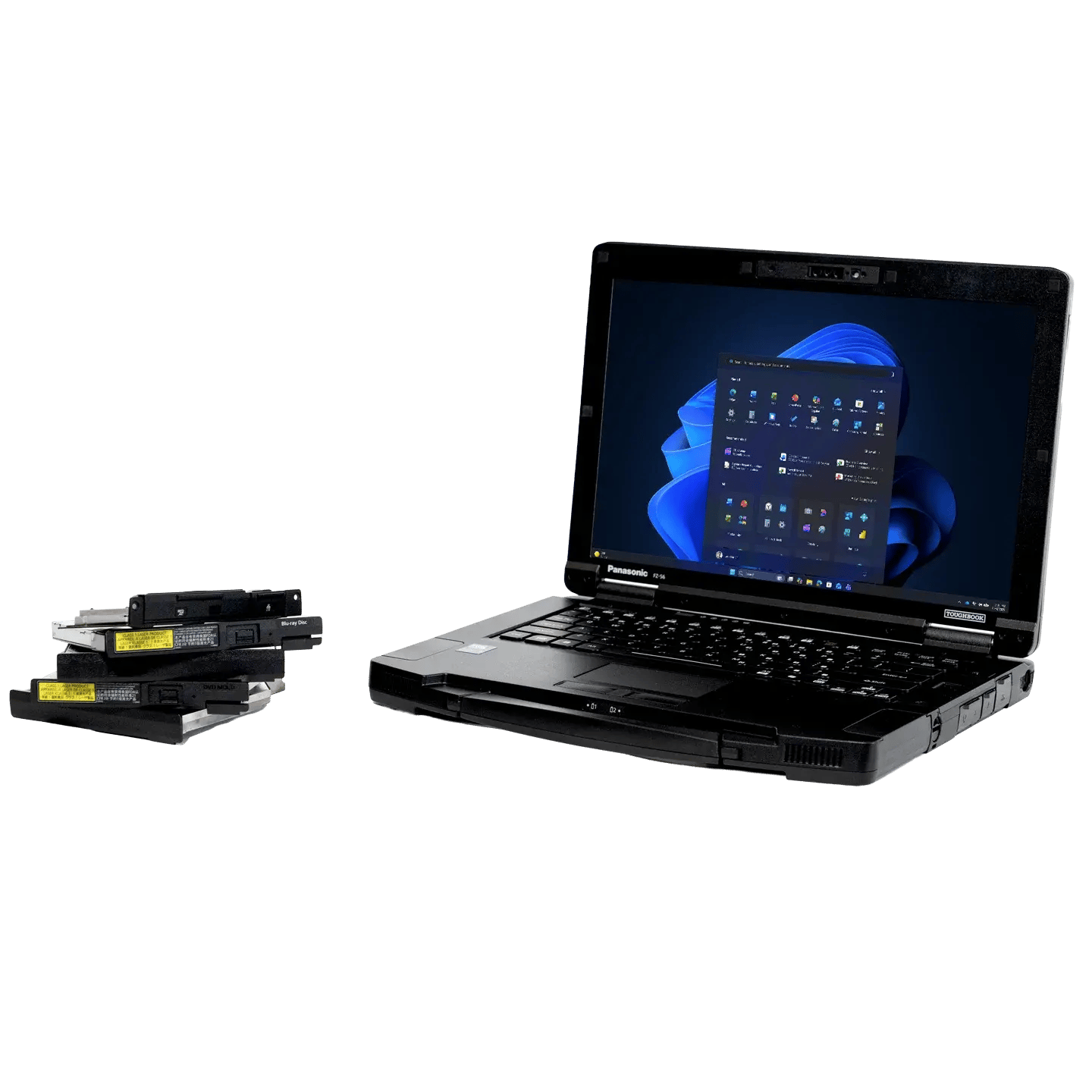

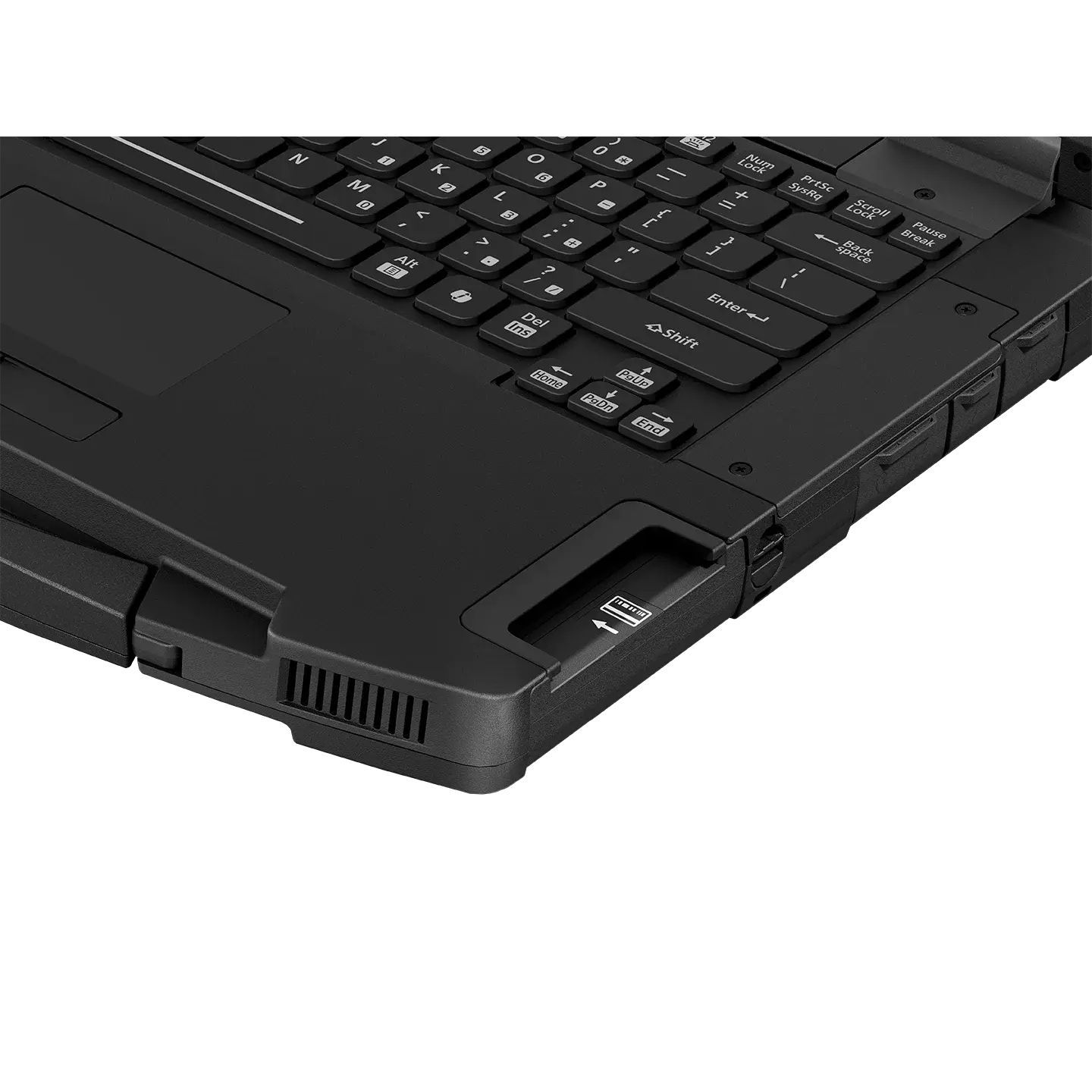

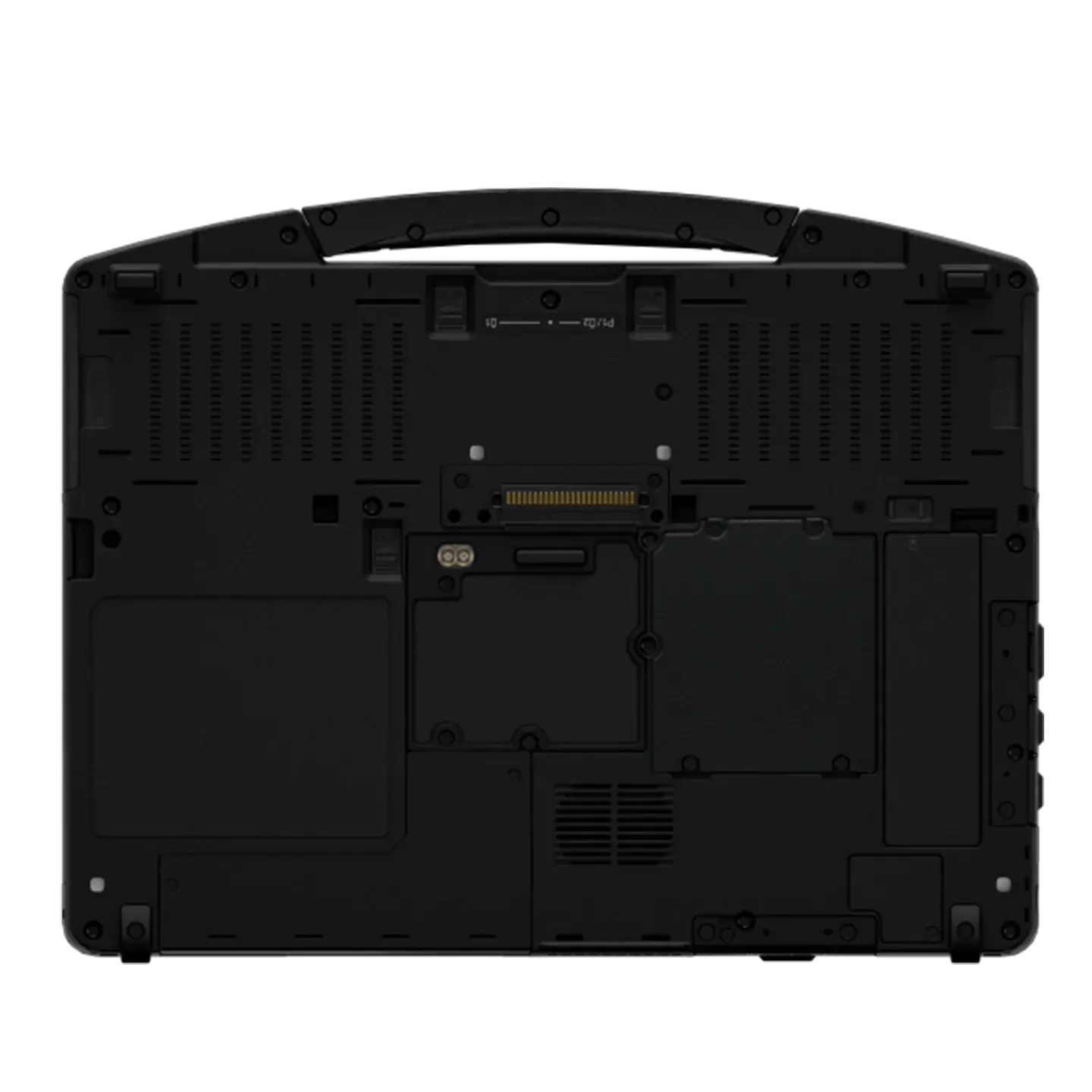

The TOUGHBOOK 56 features six user-upgradeable expansion areas including its battery, memory, storage, and three xPAK areas. The xPAKs include a barcode reader, optical drives, second batteries as well as additional I/O including 10Gbps Ethernet and storage, such as FIPS encrypted drives. This unparalleled customization enables organizations to help futureproof, simplify ordering, shorten lead times, and decrease downtime.

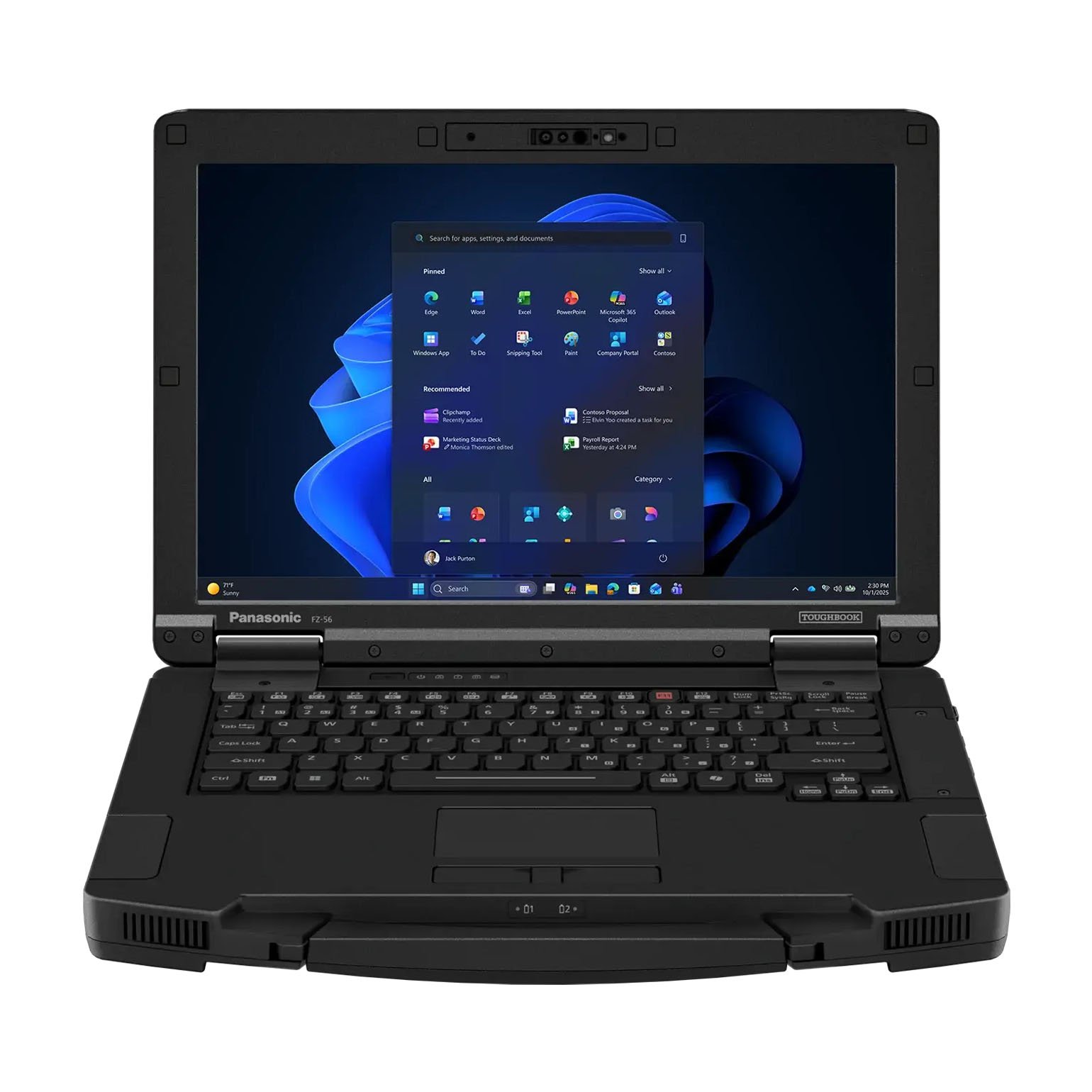

16:10 Aspect Ratio
The new 16:10 aspect ratio shows more rows of data at once, reducing scrolling and boosting efficiency. It is protected by Corning® Gorilla® Glass. The redesigned standard display is also now 59% brighter with 45% more resolution, making the TOUGHBOOK 56 built to perform wherever the job takes you.
Powering the Future of AI
The TOUGHBOOK 56 processors have up to 16 CPU cores, 8 GPU cores, and an NPU that is a dedicated artificial intelligence (AI) engine. The processors intelligently pick which to use for an AI task depending on the type and complexity. They can perform up to 97 overall peak TOPS, which can be further boosted when equipped with the industry’s first 8GB dGPU that can perform up to 34.5 overall peak TOPS.

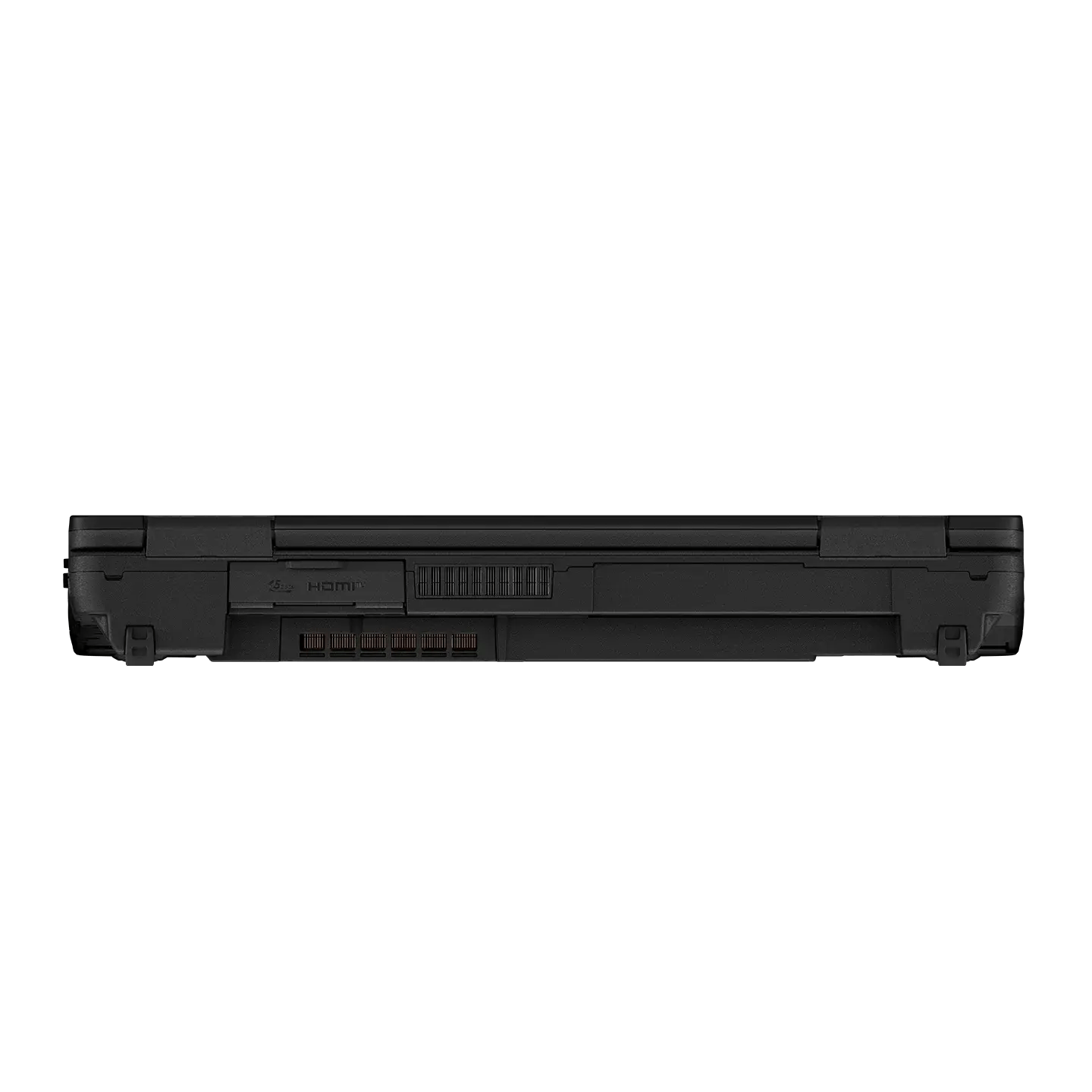

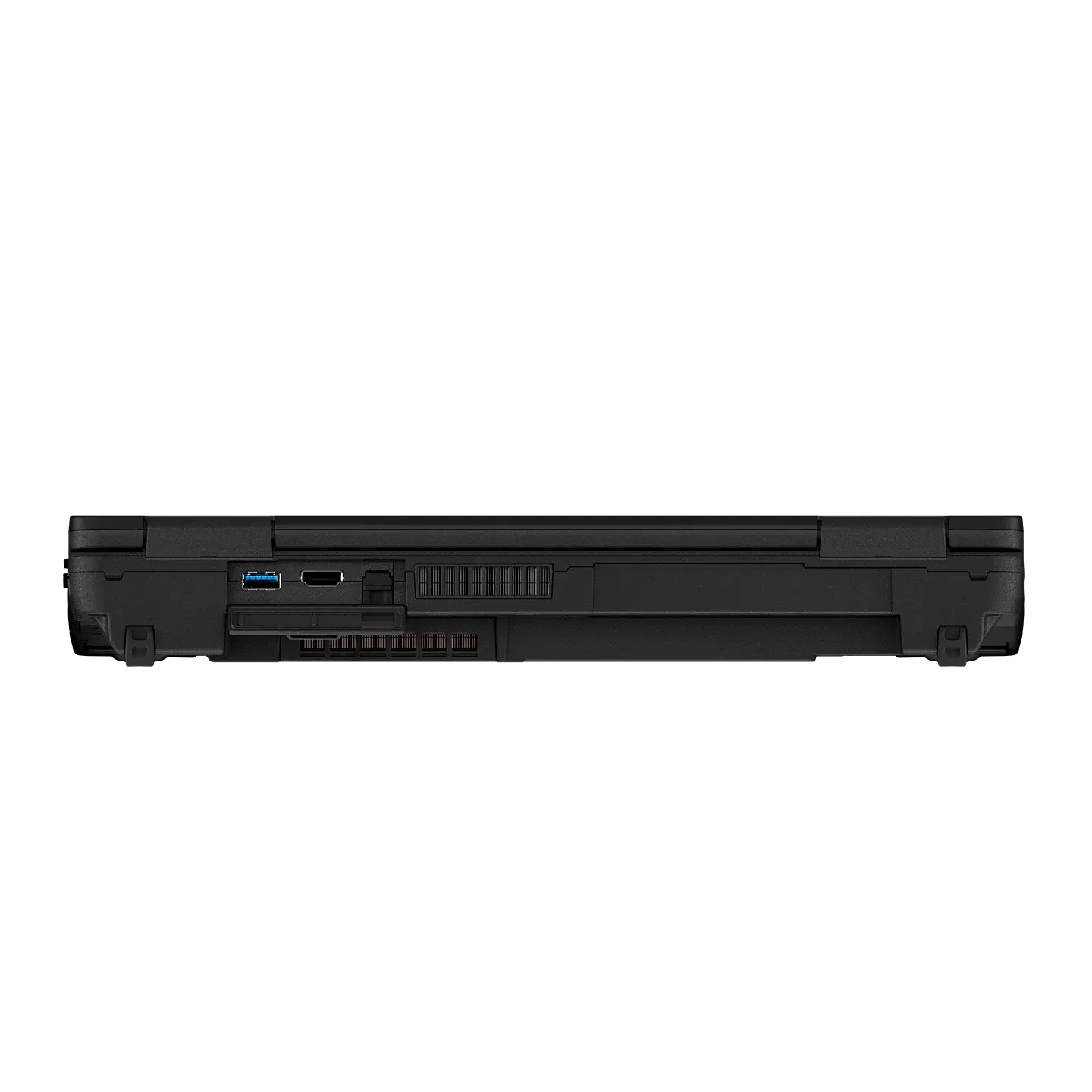

Rugged PC with an 8GB dGPU
The TOUGHBOOK 56 is powered by a 8GB dGPU for demanding graphics and AI tasks. It has 56 AI Accelerators, can perform up to 34.5 overall peak TOPS, 17 TFLOPS of peak FP32, and features the Radiance Display™ Engine for breathtaking visual clarity and fidelity.

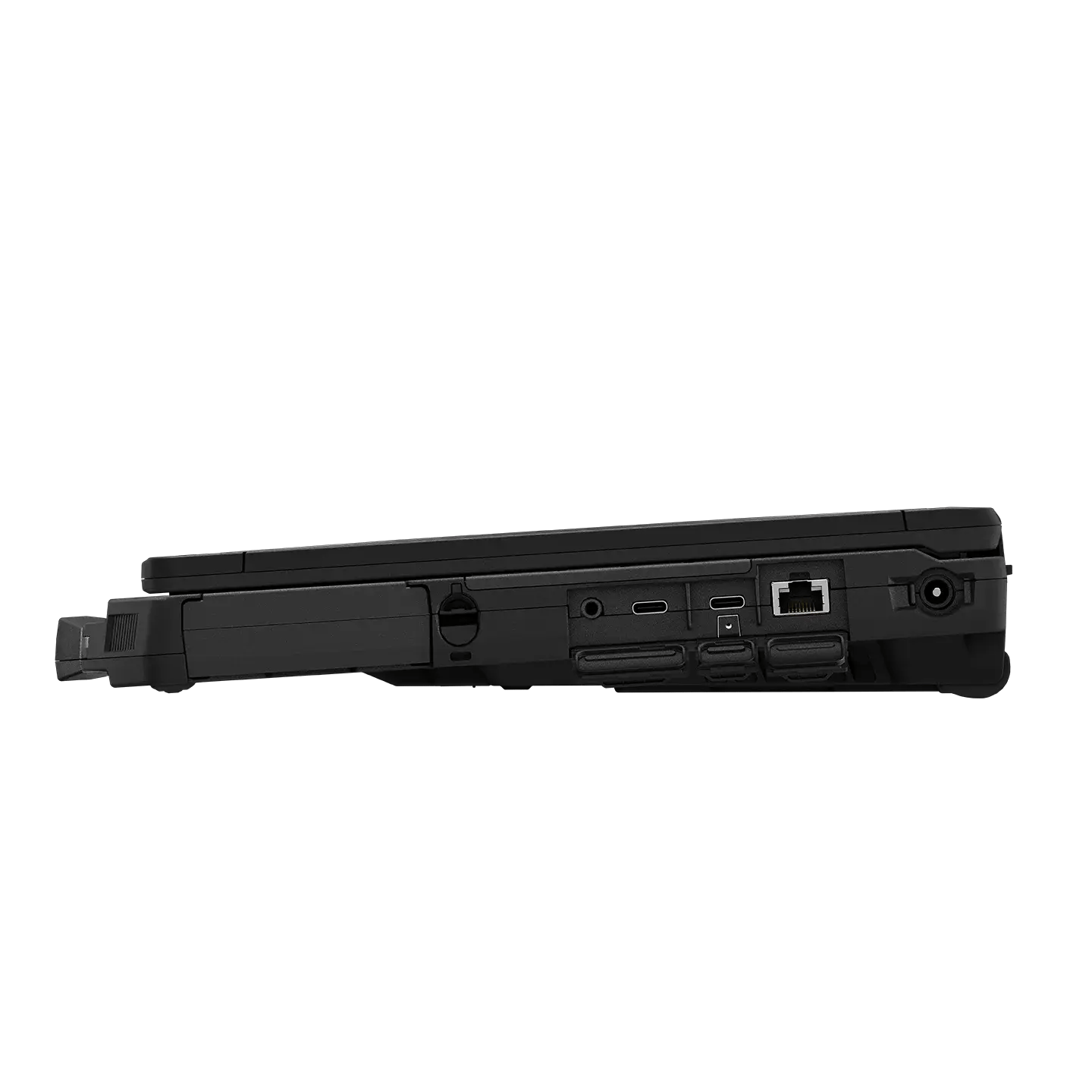

Next-Gen Ethernet Connectivity
With up to three ethernet ports, including a 10 Gbps option for faster imaging and file transfers, it also boasts an improved 5G modem (36% faster) as well as Wi-Fi 7 (2.4 times faster) to deliver high performance no matter how you connect.
Speeds up to 3.5 Gbps
The 5G modem supports 4G (LTE, LTE-A) as well as 5G (Sub6) with speeds up to 3.5 Gbps. It seamlessly connects to the best available network without any disruption or intervention by the user. In addition, it supports FirstNet® (band 14), Private Cellular CBRS (band 48), and has dual SIM (physical SIM + eSIM) for maximum flexibility.
The Next Level of Security
The TOUGHBOOK 56 is a rugged PC that comes standard with OPAL encrypted SSD’s and has available FIPS encrypted SSD’s. Also included with every unit is software encryption.
