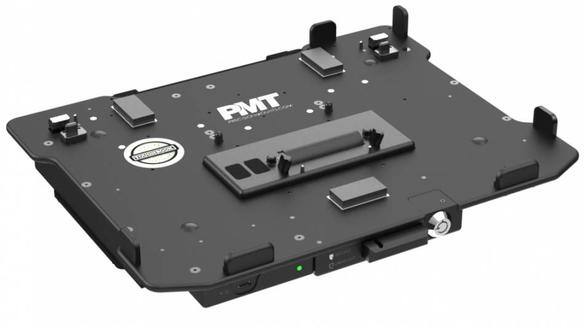

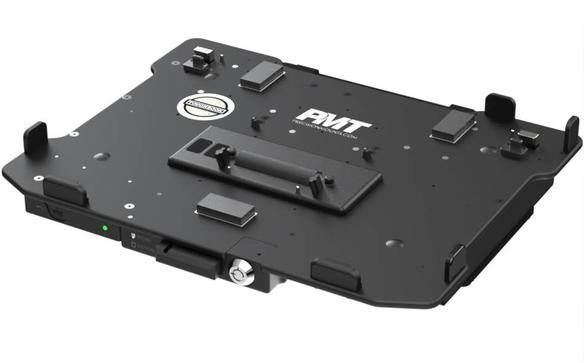

Overhead view of a black NPT docking station for TOUGHBOOK 40.

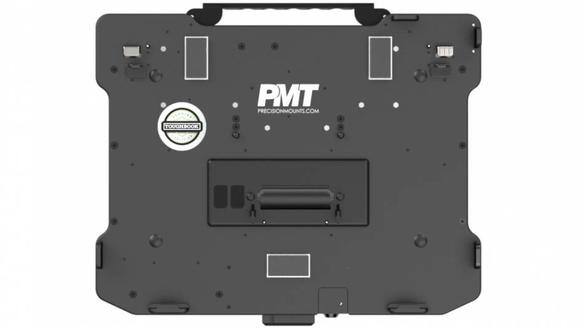

Overhead view of a black docking station for TOUGHBOOK 40.

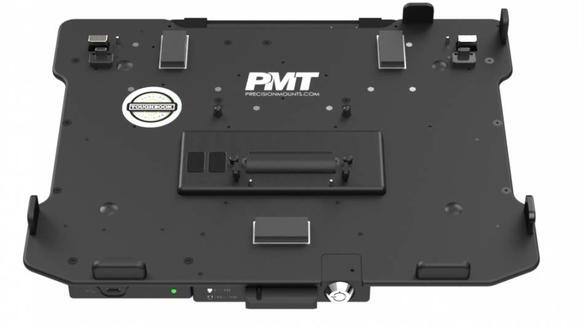

Overhead view of a black NPT docking station for TOUGHBOOK 40.

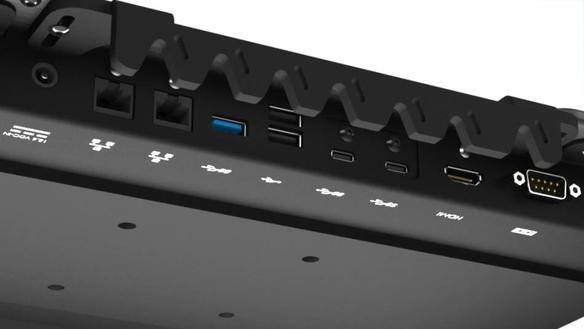

Bottom port view of a black docking station for TOUGHBOOK 40.
Side view of a black docking station with multiple ports and symbols.
Top port view of a black NPT docking station for TOUGHBOOK 40.

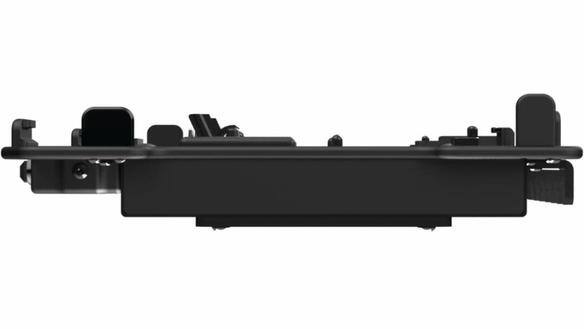

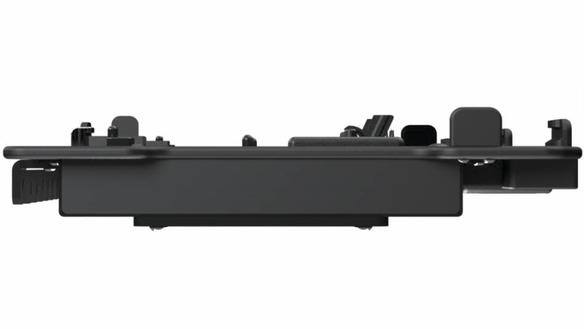

Side view of a black NPT docking station for TOUGHBOOK 40.

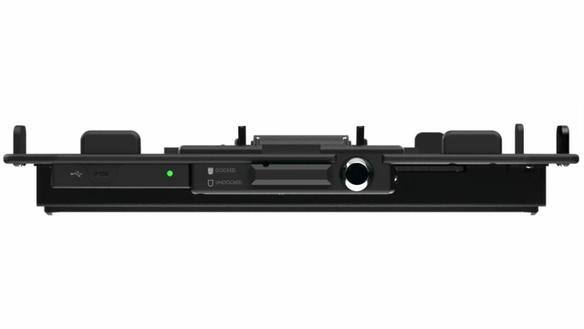

Front view of a black NPT docking station for TOUGHBOOK 40.

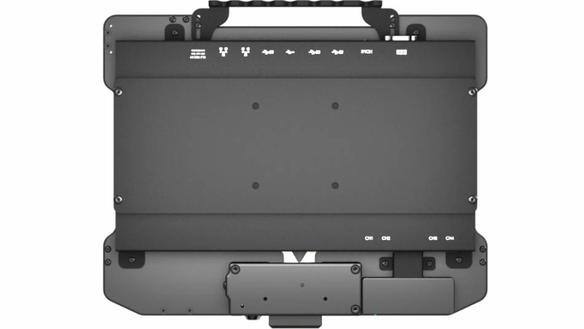

Back view of a gray docking station for TOUGHBOOK 40.

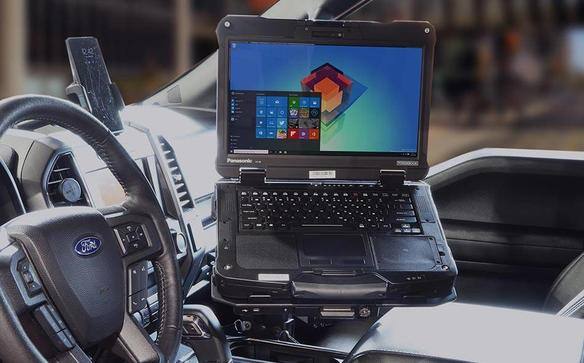

Toughbook 40 laptop mounted in vehicle above car shifter.

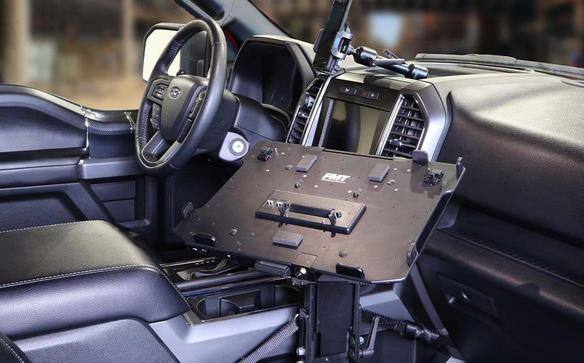

NPT docking station mounted in a car's center console area.

Full NPT Docking Station for TOUGHBOOK 40

SKU:

  • AS7.P040.110
Compatible with TOUGHBOOK 40
Contact Sales

  • Antenna pass-through: No RF pass-through
  • Ports: 2 x Ethernet (Gbe), 2 x USB 2.0, 1 x USB 3.2, 2 x Rear USB-C 3.2*, 1 x Front USB-C 2.0, 1 x Serial RS232, 1 x HDMI, 1 x Power In 15.0 Vdc
  • Power adaptor NOT included
  • Mounting interface with VESA 75 and PMT wedge tilt 1.875” x 1.25” hole patterns
  • MIL-STD 810G; SAE J1455 tested and certified

* DP Alternate mode (4K, 60p) available for “Full” docks only. Only one port can be used for display output at a time, with the port closest to the HDMI port taking priority.
