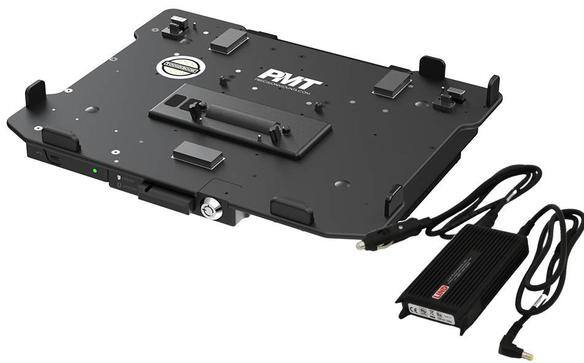

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40

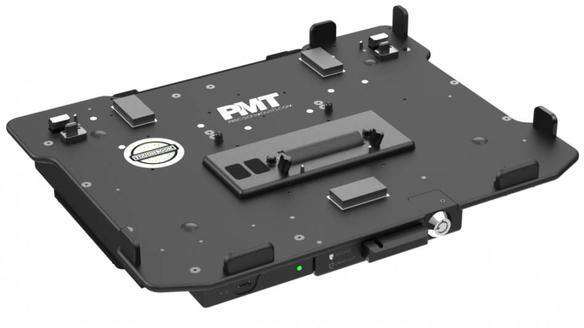

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 right profile

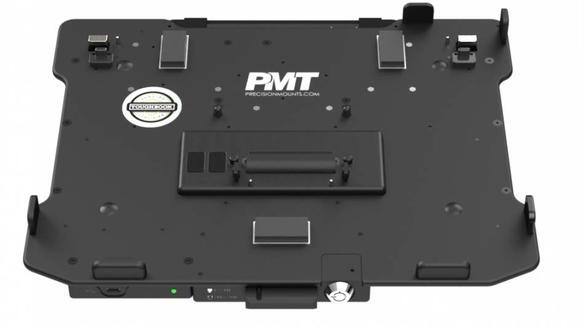

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 overhead

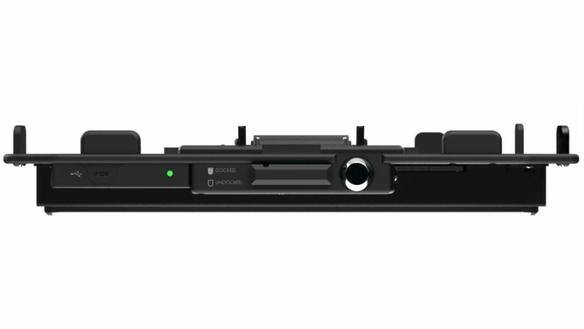

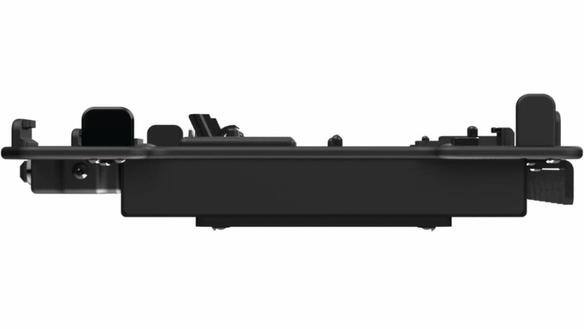

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 left port side profile

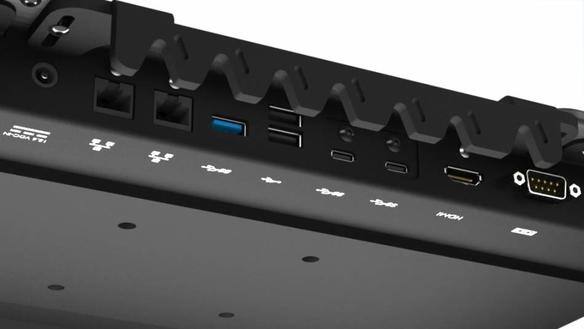

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 back port profile

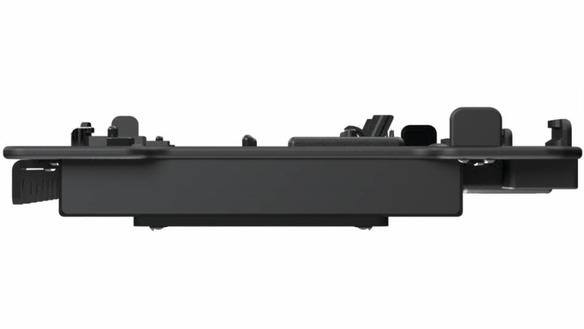

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 right side port profile
Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 top port profile

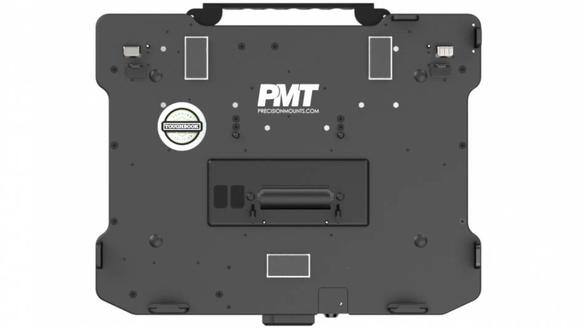

Top side of Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40

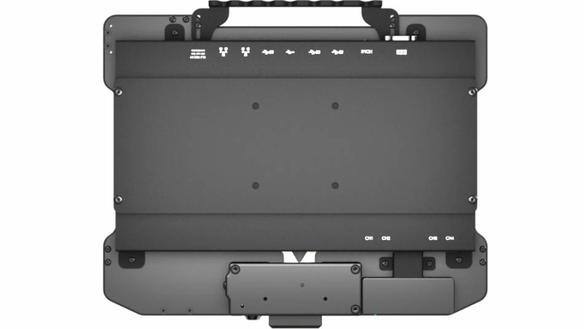

Back of Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40

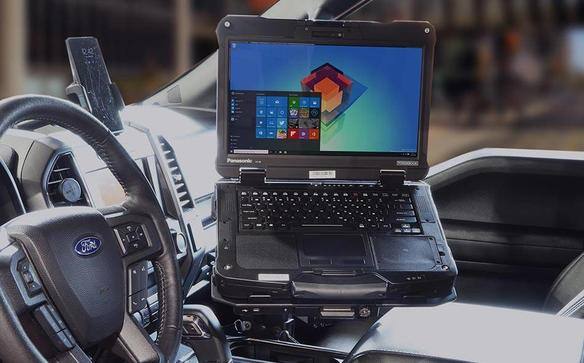

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 mounted on top of shifter of car

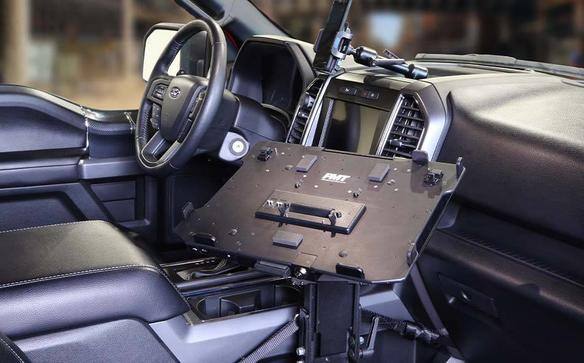

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40 mounted on top of shifter without tablet

Full NPT Docking Station with Power Adaptor for TOUGHBOOK 40

SKU:

  • AS7.P040.110-PS
Compatible with TOUGHBOOK 40

  • Antenna pass-through: No RF pass-through
  • Ports: 2 x Ethernet (Gbe), 2 x USB 2.0, 1 x USB 3.2, 2 x Rear USB-C 3.2*, 1 x Front USB-C 2.0, 1 x Serial RS232, 1 x HDMI, 1 x Power In 15.0 Vdc
  • Power adaptor included
  • Mounting interface with VESA 75 and PMT wedge tilt 1.875” x 1.25” hole patterns
  • MIL-STD 810G; SAE J1455 tested and certified

DP Alternate mode (4K, 60p) available for “Full” docks only. Only one port can be used for display output at a time, with the port closest to the HDMI port taking priority.
