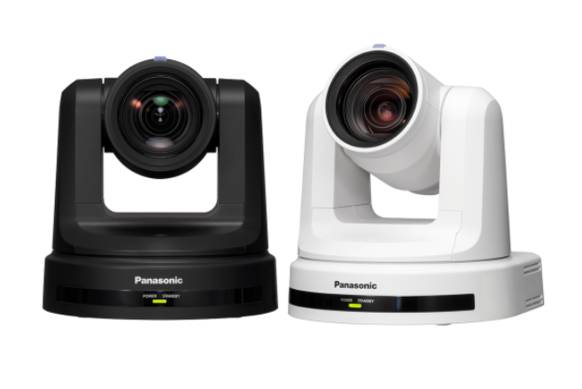

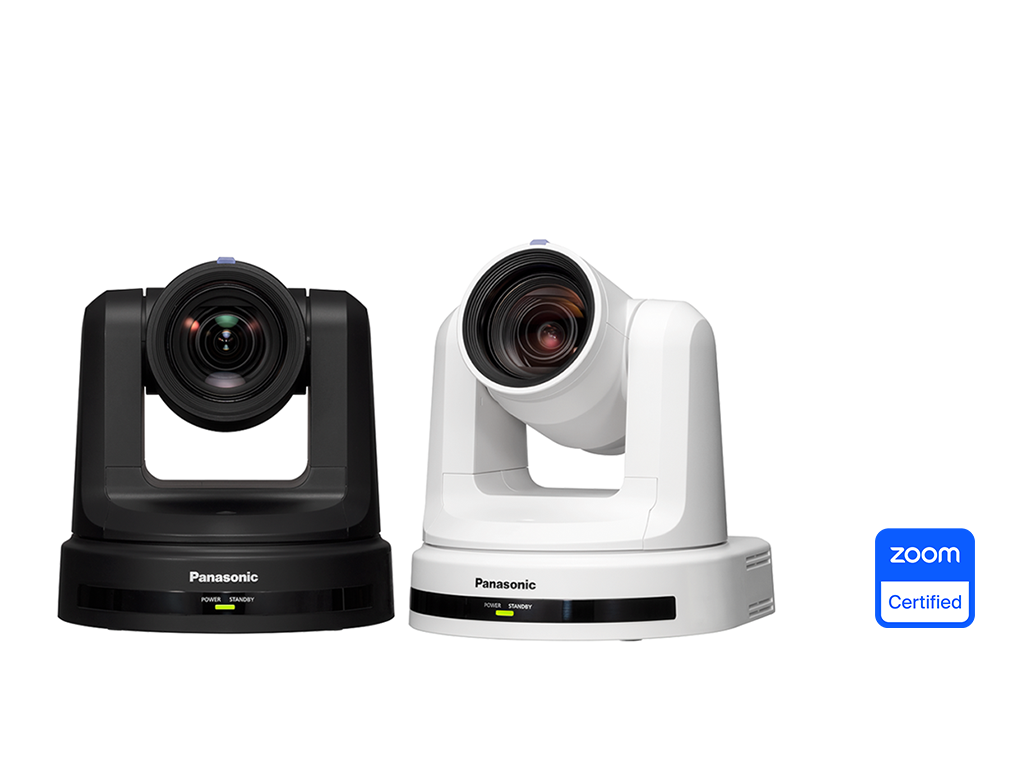

Full HD Zoom Certified PTZ Camera
PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-HE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-HE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-HE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.
- High quality video streaming for more comfortable online communication
- Excellent system flexibility to achieve smart wiring and smooth operation
- Compact size and excellent functionality that do not disturb the existing video streaming environment
- New camera web interface with expanded control and dark mode
Product Specifications
| SKU | AW-HE20 |
|---|---|
| Resolution | HD |
| Sensor size | 1/2.8 |
| Field of view | 71 degrees |
| Frame rate | HD 30p |
| Optical zoom | 12x |
| Image stabilization | No |
| SDI | 3G x 1 |
| HDMI | 4K 30p |
| USB | Yes |
| Genlock | No |
| NDI | No |
| NDIHX | No |
| ND filter | No |
| FreeD tracking data | No |
| Zoom Certified | Yes |
| PoE | PoE+ |
| SRT | No |
| Control | Serial/IP/IR |
| RTMP/RTMPS | Yes |
| Optical fibre | No |
| VLOG | No |
| HD cropping | No |
| Audio | 3.5mm, unbalanced audio |

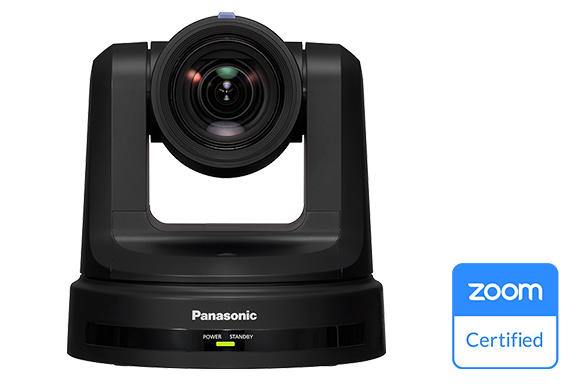

Zoom Certified USB Camera
The AW-HE20 supports UVC so it can be used with an existing USB-based system. A single LAN cable can be used to connect multiple camera units to a PC, allowing wire-saving installation and configuration of a simple and compact system. By using the free PTZ Virtual USB Driver software, the AW-HE20 can be used as a web camera linkable to an online conference service via LAN cable even when the USB cable cannot reach the camera installation location such as a ceiling.
With Zoom certification and a dedicated mode (USB: Video Conference), the AW-HE20W/K is ideal for web conferencing.
