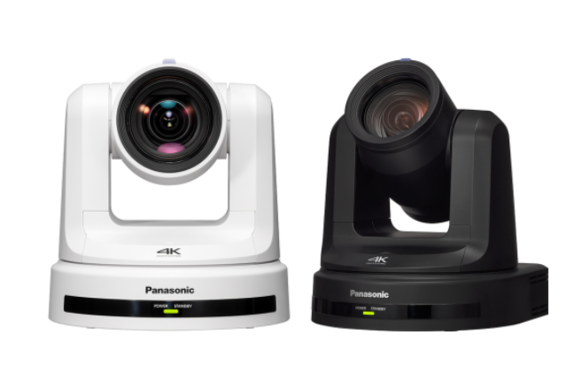

4K/30P Zoom Certified PTZ Camera
PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-UE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-UE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-UE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.
- 4K PTZ Camera
- Compact size & wide angle
- Simultaneous 3G-SDI, HDMI & USB output
- High quality video streaming for more comfortable online communication
- Excellent system flexibility to achieve smart wiring and smooth operation
Product Specifications
| SKU | AW-UE20 |
|---|---|
| Resolution | 4K UHD |
| Sensor size | 1/2.8 |
| Field of view | 71 degrees |
| Frame rate | 4K 30P |
| Optical zoom | 12x |
| Image stabilization | No |
| SDI | 3G X 1 |
| HDMI | 4K 30p |
| USB | Yes |
| Genlock | No |
| NDI | No |
| NDIHX | No |
| ND filter | No |
| FreeD tracking data | No |
| Zoom Certified | Yes |
| PoE | PoE+ |
| SRT | Yes |
| Control | Serial/IP/IR |
| RTMP/RTMPS | Yes |
| Optical fibre | No |
| VLOG | No |
| HD cropping | No |
| Audio | 3.5mm unbalanced audio |

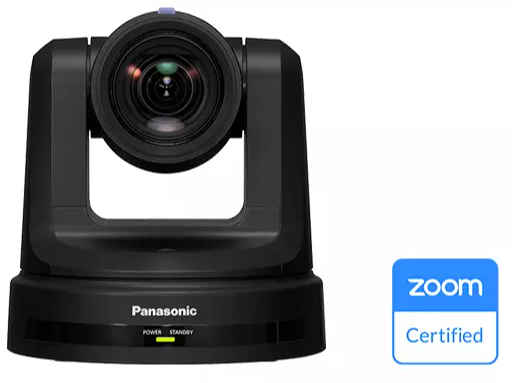

Zoom Certified USB Camera
The AW-UE20 supports UVC so it can be used with an existing USB-based system. A single LAN cable can be used to connect multiple camera units to a PC, allowing wire-saving installation and configuration of a simple and compact system. By using the free PTZ Virtual USB Driver software, the AW-UE20 can be used as a web camera linkable to an online conference service via LAN cable even when the USB cable cannot reach the camera installation location such as a ceiling.
With Zoom certification and a dedicated mode (USB: Video Conference), the AW-UE20W/K is ideal for web conferencing.
