4K Professional PTZ Camera with NDI

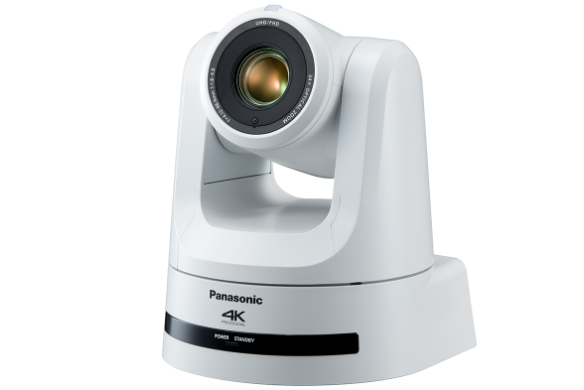

The AW-UE100 will be the newest addition to Panasonic's comprehensive professional PTZ camera lineup. The AW-UE100 integrated pan/tilt/zoom camera supports a wide variety of IP transmission protocols, including high-bandwidth NDI, high-efficiency NDI|HX and Secure Reliable Transport (SRT). This new PTZ camera has a newly-designed direct drive motor for smooth pan and tilt movement and offers installation flexibility, low noise and high-resolution image capture. It is ideal for high-quality live remote and studio production for broadcast, staging, corporate and sports events.
- Supports a wide variety of IP transmission protocols, including NDI*¹, NDI|HX, and SRT*²
- Supports 4K 60p*³ shooting and 12G-SDI output
- Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
- Supports FreeD*4 for building AR/VR systems
- Adopts new mechanical pan/tilt for improved responsiveness and quietness
Product Specifications
| SKU | AW-UE100 |
|---|---|
| Resolution | 4K UHD |
| Sensor size | 1/2.5 |
| Field of view | -- |
| Frame rate | 4K 60p |
| Optical zoom | 24x |
| Image stabilization | Optical |
| SDI | 12G, 3G X 1 |
| HDMI | 4K 60p |
| USB | No |
| Genlock | Yes, BNC |
| NDI | Yes, Included 4K |
| NDIHX | Yes, Included |
| ND filter | Yes |
| FreeD tracking data | Yes |
| Zoom Certified | -- |
| PoE | PoE++ |
| SRT | Yes |
| Control | Serial/IP/IR |
| RTMP/RTMPS | Yes |
| Optical fibre | No |
| VLOG | No |
| HD cropping | Yes |
| Audio | 3.5mm, unbalanced audio |

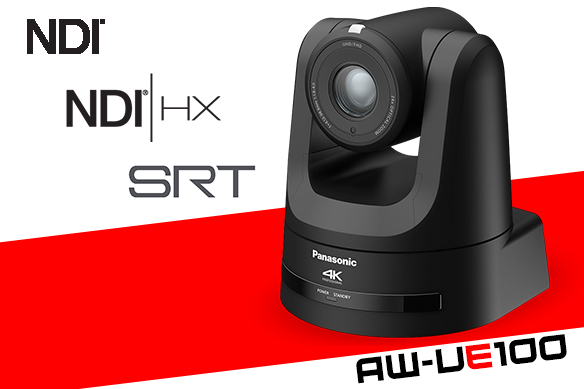

Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX (HD) is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
Supports 4K 60p shooting and 12G-SDI output

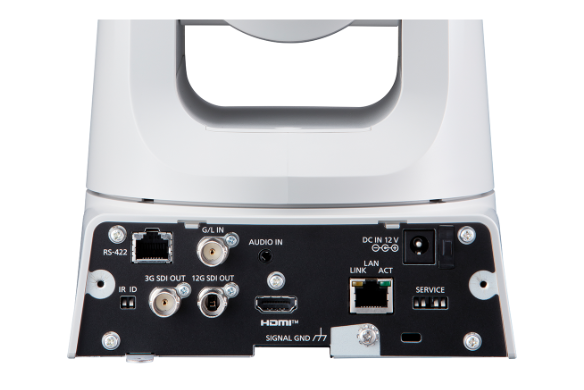

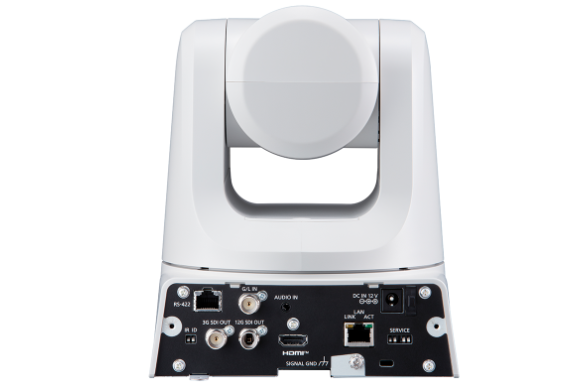

Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP. The AW-UE100 PTZ camera offers PoE++ support for camera power, control and video transmission over a single cable. Additionally, a power adapter is included with the camera.

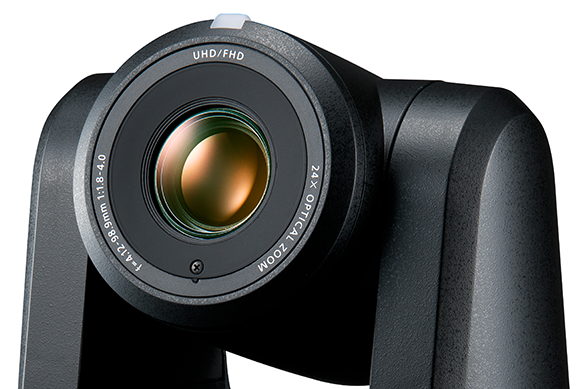

Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.

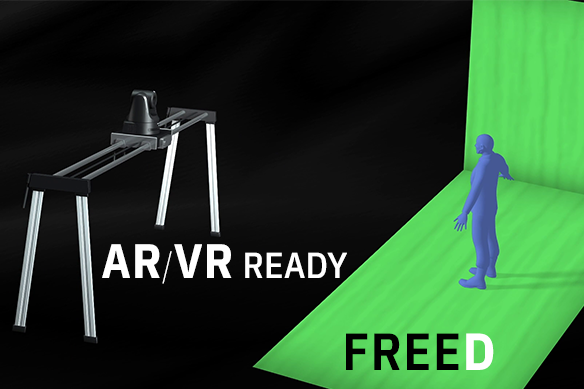

Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR (Augmented Reality / Virtual Reality) systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.

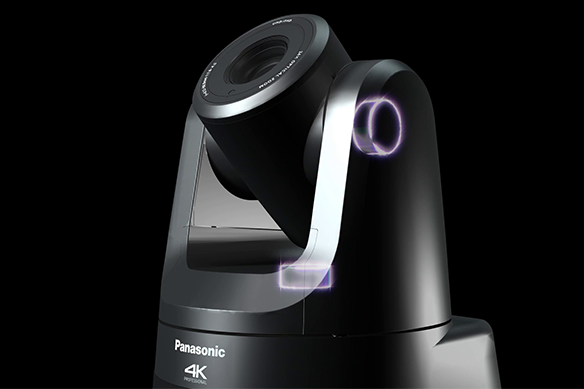

Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
