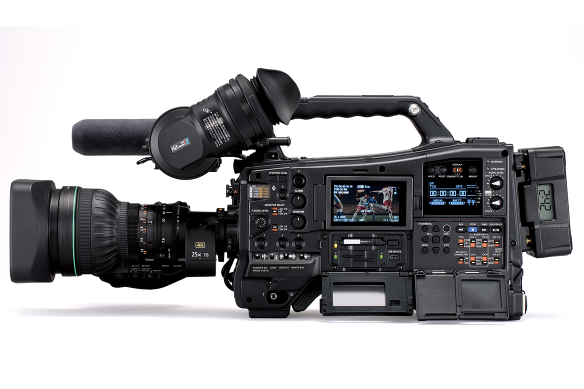

4K HDR ENG Shoulder-Mount Camera - AJ-CX4000GJ-video_production_Main-0

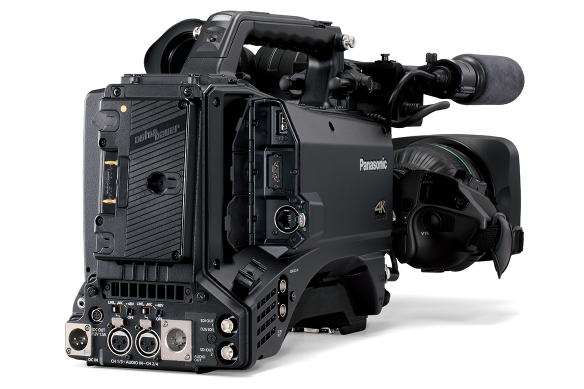

4K HDR ENG Shoulder-Mount Camera - AJ-CX4000GJ_ethernet_network_cable_connection_12g-sdi

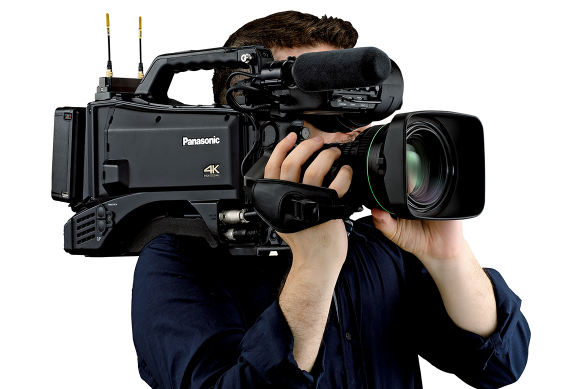

4K HDR ENG Shoulder-Mount Camera - AJ-CX4000GJ_comfortable_shoulder_mount_eng_camera

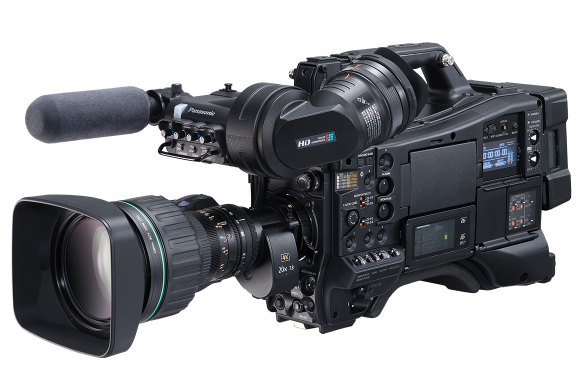

4K HDR ENG Shoulder-Mount Camera - AJ-CX4000GJ_camera_streaming_eng_cam

4K HDR ENG Shoulder-Mount Camera

SKU :

  • AJ-CX4000GJ
New generation camera designed for the professionals capturing news, sports, live events, TV shows, documentaries & more. The CX4000 delivers an impressive 4K HDR image for recording and provides advanced networking functions for reliable broadcast / livestreaming / NDI-based video productions. Ergonomically optimized for the camera operator and an enhanced workflow for the editor makes the CX4000 the ideal choice for the entire video production team.
Contact Sales

  • 4K HDR video recording & support for SD / microP2 / expressP2 card recording
  • 4K/ UHD 60p 10-bit 4:2:2 output via 12G-SDI
  • B4 lens mount for interchangeable 2/3" lenses, features optical magnifying system
  • Direct livestreaming compatible with RTSP / RTMP / RTMPS
  • Ergonomically designed shoulder mount optimized for news, documentary and sports coverage

Leading the ENG Broadcast Camera Revolution

The AJ-CX4000 4K HDR ENG camera responds to the evolving needs of the professional broadcast industry, delivering high-quality imaging performance and advanced workflow compatibility, while retaining a broadcast-standard B4 lens mount and a comfortable shoulder-mount design. As the newest model in the CX Series camera lineup, the CX4000 offers many of the same features and formats of the AG-CX350 handheld camcorder, and its larger shoulder-mount form factor allows it to incorporate the breakthrough imaging innovations, such as LSSIEL technology, found in the AK-UC4000 studio camera.

The fusion of high-quality 4K HDR video sensor performance, ISO recording ability, IP connectivity, and field-tested reliability make the AJ-CX4000 an ideal camcorder for use in a variety of industries. Whether being used for ENG, out in the field to deliver a live remote news broadcast, in a theater for live streaming a concert to YouTube Live, on a remote island to record footage for a reality TV show, or in a stadium to capture a sporting event for a documentary, the versatile CX4000 ENG camera can handle it all.

4K Sensor with Advanced Imaging Technology

Equipped with a large 11.14 megapixel MOS sensor, the AJ-CX4000 achieves 2000 horizontal TV lines with oversampling. In addition, it offers high-quality 4K pictures with low noise, wide dynamic range, dual native ISO technology for superb low light performance, and high sensitivity of F10 (59.94 Hz) / F11 (50 Hz) in High Sensitivity mode.

Brilliant HDR (High Dynamic Range)

The AJ-CX4000 features HLG (Hybrid Log-Gamma)*1 for recording HDR (High Dynamic Range) video and is equipped with the following HLG recording assist functions:

  • SDR Monitoring Gamma: Gamma curves for monitoring HLG images with the SDR viewfinder or other SDR monitor
  • HDR/SDR Parallel Output: Dual SDI can output both HDR and SDR simultaneously
  • VF/LCD HDR/SDR Selector:Assignable to the USER button for easy switching between HDR and SDR even during recording
  • Eight mode Gamma: Select from HD/SD/FILMLIKE 1/FILMLIKE 2/FILMLIKE 3/FILM-REC/VIDEO-REC/HLG gamma curves

0.005 lx of Minimum Illumination

The AJ-CX4000 achieves high sensitivity with DS gain. Combined with master gain, this enables a maximum +76 dB,*2 for ultra-high sensitive recording at a minimum subject illumination of 0.005 lx.

12G-SDI OUT Compatible with 4K 10-Bit 4:2:2 Output

The standard 12G-SDI output terminal delivers high-image-quality UHD 60p (50p) 10-bit 4:2:2 output. Also provided are XLR audio input (2CH) terminals compatible with +48-V phantom power supply as well as HDMI OUT, TC IN/TC OUT, GENLOCK IN, USB3.0 (DEVICE) and USB2.0 (HOST, wireless module) terminals.

Industry Standard Recording Formats / Editing Software Support

The AJ-CX4000 is capable of recording in various formats at different compression rates, such as HEVC and MOV/P2 MXF*3 file formats.

Using the new, high-efficiency codec, HEVC (H.265, LongGOP, 10-bit, 4:2:0, MOV), the CX4000 records high-quality 4K 10-bit images at low, 100-Mbps bit-rates. Free software, such as the VLC Media Player or QuickTime Player, provide smooth video playback on a PC, laptop or MacBook*4.

The CX4000 records MOV files that are highly compatible and easy to use. This file format is the same as that used on Panasonic's EVA1 cinema camera / AG-CX350 camcorder and supports long file names with up to 20 characters, allowing simplified video clip management. And it supports the MXF P2 file format for broadcasting, enabling AVC-Intra or AVC-LongG HD recording.

Livestream Directly to YouTube / Facebook Live

Livestreaming*5 HD video directly to YouTube, Facebook Live, and other streaming services is easier than ever with the RTSP, RTMP, and RTMPS protocol support*6 of the AJ-CX4000 camera. The CX4000 also supports multicast streaming for streaming to multiple destinations, as well as simultaneous streaming and recording.

  1. The HLG specification was developed jointly by Japanese broadcaster NHK and the BBC in the UK. It is defined in ARIB STD-B67 and ITU-R BT.2100.

  2. With super gain set at F1.4, +42 dB and digital super gain (cumulative mode) at +34 dB.

  3. AVC-Intra200/100/50 codec will be supported in the future with the firmware upgrade.

  4. Playback may lack smoothness depending on the PC environment, such as storage and memory devices.

  5. There are some conditions under which streaming is not possible, such as when recording in UHD format or using NDI|HX mode.

  6. The P2 Network Setting Software is convenient for setting up the RTMP and RTMPS functions.
